openSenseMap with CircuitPython

The openSenseMap is a free data platform for environmental data.
To send measurements to it, you first need to create a new senseBox. You will then receive a Box ID and sensor IDs for each listed sensor.
A detailed registration guide can be found here.

Requirements​

Software Libraries​

All required modules for connecting to openSenseMap are already included in CircuitPython:

  • wifi – Wi-Fi connection
  • adafruit_requests – HTTP requests
  • adafruit_connection_manager – Connection management

Additionally, you only need the library for your sensor (e.g. HDC1080).

Register senseBox on openSenseMap​

  1. Create an account on openSenseMap
  2. Add a new senseBox and include your sensors

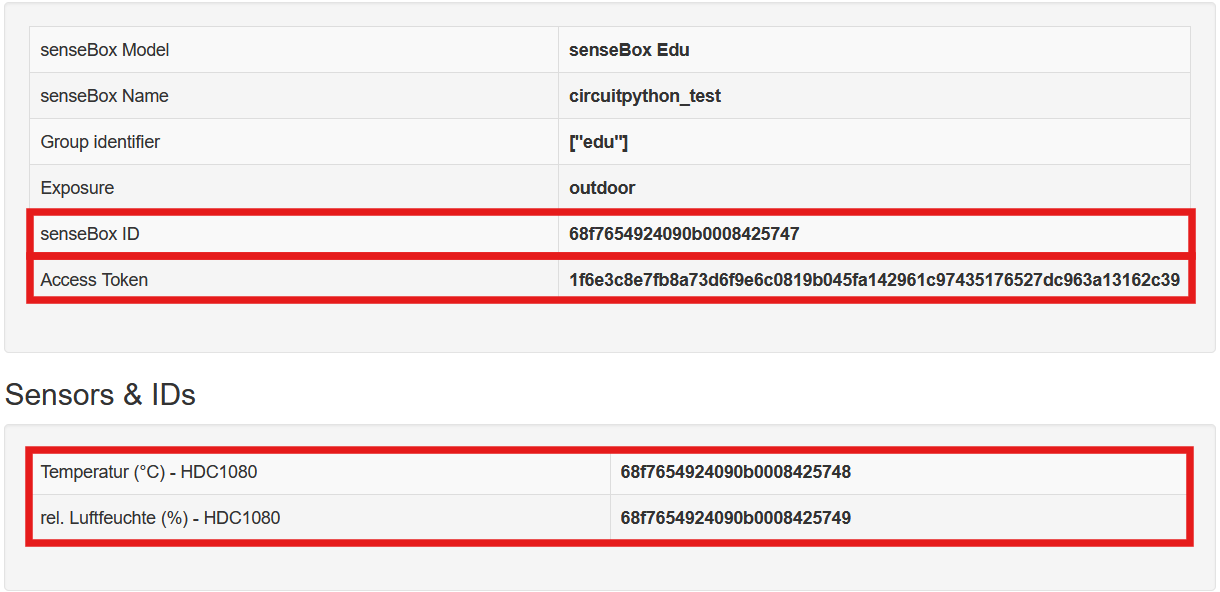

  3. Take note of the following information:
    • senseBox ID: The unique ID of your box
    • Sensor IDs: The IDs for each registered sensor
    • Access Token: Found under “Security” in your box settings

Configuration​

Create settings.toml​

Create a settings.toml file in the root directory of your senseBox (CIRCUITPY) with the following content:

# Wi-Fi credentials
CIRCUITPY_WIFI_SSID = "Your_WiFi_Name"
CIRCUITPY_WIFI_PASSWORD = "Your_WiFi_Password"

# openSenseMap credentials
SENSEBOX_ID = "Your_senseBox_ID"
TEMP_SENSOR_ID = "Sensor_ID_for_Temperature"
HUMIDITY_SENSOR_ID = "Sensor_ID_for_Humidity"
AUTH_TOKEN = "Your_Access_Token"

Code​

This code sends temperature and humidity data from the HDC1080 sensor to openSenseMap:

import time
import os
import board
import digitalio
from hdc1080 import HDC1080
import wifi
import adafruit_requests
import adafruit_connection_manager

# IO Enable Pin for senseBox MCU-S2
io_enable_pin = digitalio.DigitalInOut(board.IO_POWER)
io_enable_pin.direction = digitalio.Direction.OUTPUT
io_enable_pin.value = False

# Initialize I2C and sensor
i2c = board.I2C()
sensor = HDC1080(i2c)

# Connect to WiFi
print(f"Connecting to {os.getenv('CIRCUITPY_WIFI_SSID')}")
wifi.radio.connect(
    os.getenv("CIRCUITPY_WIFI_SSID"),
    os.getenv("CIRCUITPY_WIFI_PASSWORD")
)
print(f"Connected!")

# openSenseMap configuration
SENSEBOX_ID = os.getenv("SENSEBOX_ID")
TEMP_SENSOR_ID = os.getenv("TEMP_SENSOR_ID")
HUMIDITY_SENSOR_ID = os.getenv("HUMIDITY_SENSOR_ID")
AUTH_TOKEN = os.getenv("AUTH_TOKEN")

# API endpoint
OSENSEMAP_HOST = "ingress.opensensemap.org"
OSENSEMAP_PATH = f"/boxes/{SENSEBOX_ID}/data"

# Initialize requests session
pool = adafruit_connection_manager.get_radio_socketpool(wifi.radio)
requests = adafruit_requests.Session(pool)

while True:
    try:
        # Read sensor values
        temperature = sensor.temperature
        humidity = sensor.humidity

        print(f"Temperature: {temperature:.2f} °C")
        print(f"Humidity: {humidity:.2f} %")

        # Prepare data
        data = {
            TEMP_SENSOR_ID: f"{temperature:.2f}",
            HUMIDITY_SENSOR_ID: f"{humidity:.2f}"
        }

        # Send to openSenseMap
        url = f"http://{OSENSEMAP_HOST}{OSENSEMAP_PATH}"
        headers = {
            "Content-Type": "application/json",
            "Authorization": AUTH_TOKEN
        }

        print("Sending data to openSenseMap...")
        response = requests.post(url, json=data, headers=headers)
        print(f"Response: {response.text}")
        response.close()

    except Exception as e:
        print(f"Error: {e}")

    # Wait 60 seconds before next measurement
    time.sleep(60)
